Economy Model

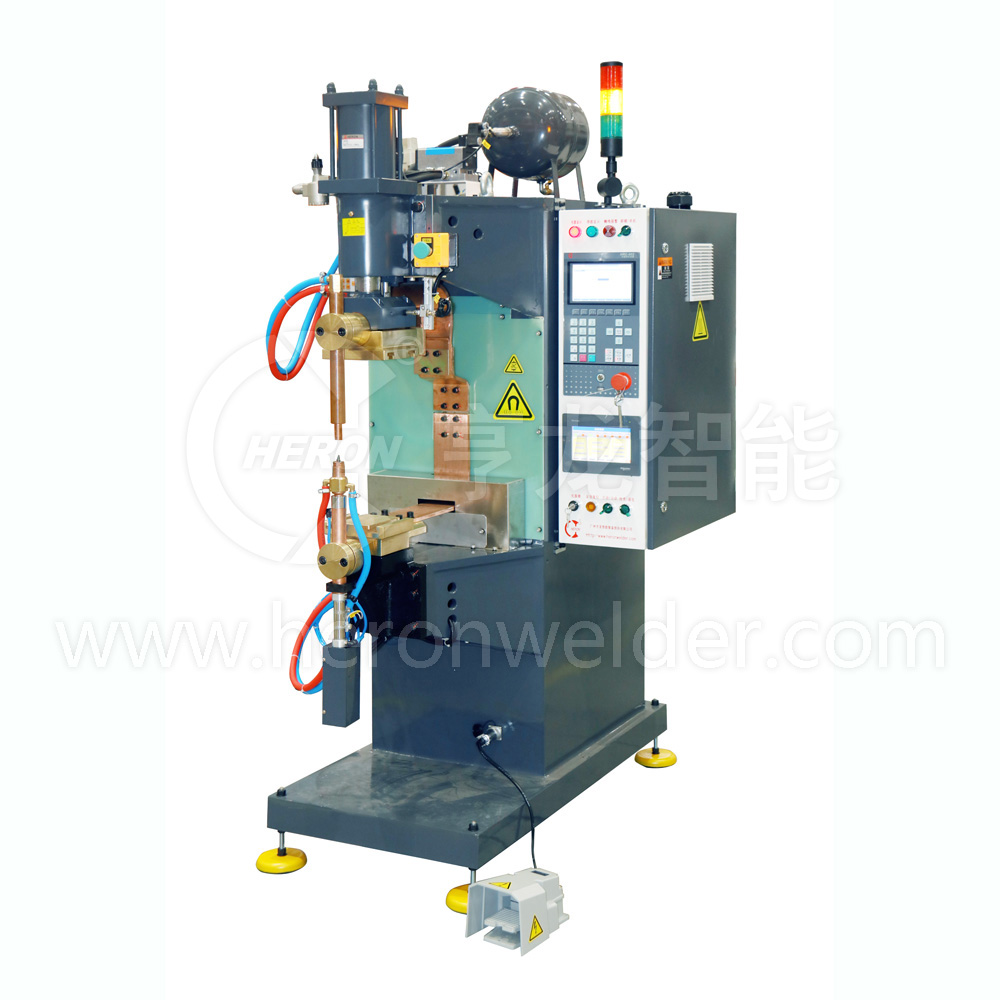

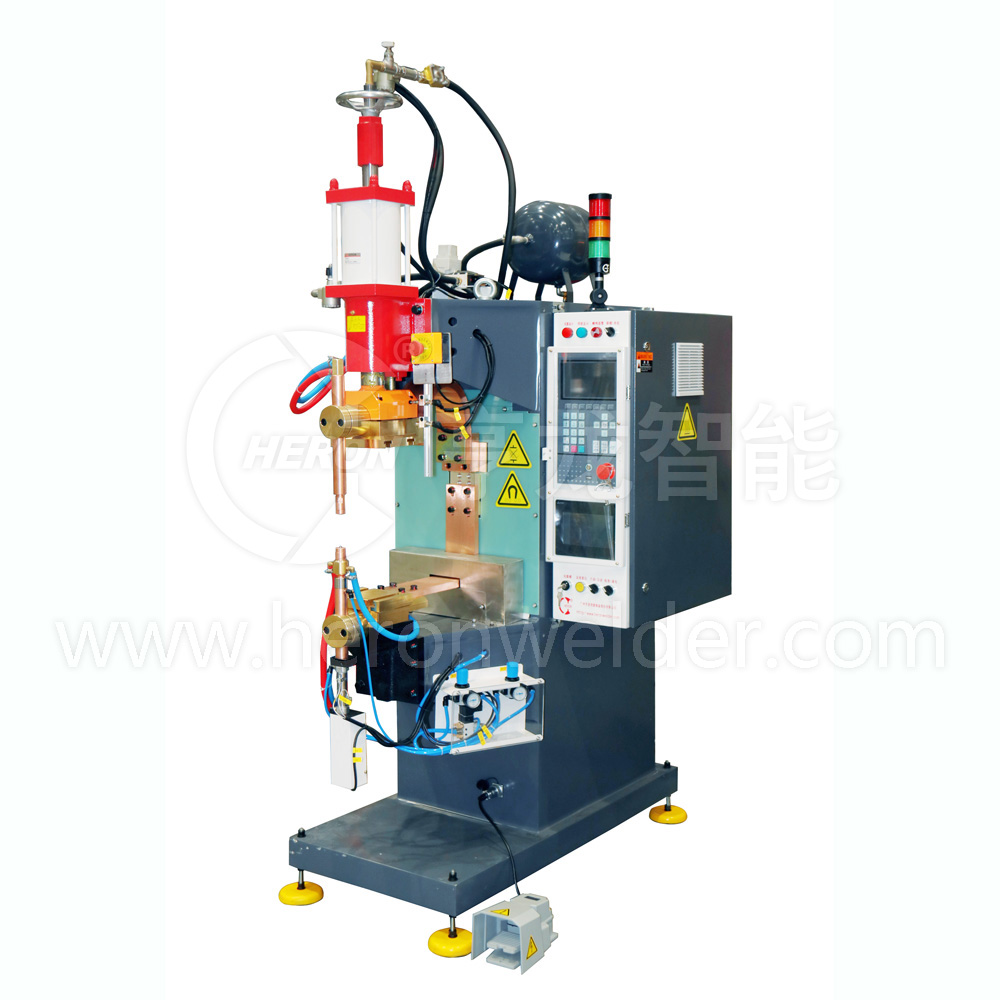

25/55/110/165/220/250/330/440KVA MFDC Spot/ Perss Welder

DB-25/55/110/165/220/250/330/440-T1L

Product Features

1. Adopt Henglong IF inverter controller HRC802/HRC803, and Henglong IF transformer

2. Good rigidity, compact design and low space occupation

3. Comply with European CE and North American CUL standards

4. The controller adopts DSP architecture, with 1KHZ/2KHZ/4KHZ three kinds of frequencies to choose, stable and reliable, with its own I/O interface, can directly control the proportional valve.

5. Modular design, easy to use and maintain

Basic Parameters

Model #

DB-25

DB-55

DB-110

DB-165

DB-220

DB-250

DB-330

DB-440

Rated Capacity

KVA

25

55

110

165

220

250

330

440

Power Supply

V/Φ/Hz

380V/3Φ/50Hz

Max. Primary Current

A

45

63

100

120

150

150

240

350

Primary Cable

MM2

3*16+2*6

3*16+2*6

3*25+2*16

3*35+2*16

3*35+2*16

3*35+2*16

3*50+2*16

3*50+2*16

Max. Short Circuit Current

KA

14

18

24

30

40

45

58

59.9

Rated Duty Cycle

%

20

20

20

20

20

20

20

20

Secondary Empty Voltage

V

7.2

8.9

10.4

13

10.4

12.5

13

10.4

Welding Cylinder Size

Φ*L

Φ80*60

Φ100*60

Φ125/100

Φ140*100

Φ140*100

Φ200*100

Φ200*100

Φ200*100

Max. Working Pressure

N

2460

3851

6027

7546

7546

15395.8

15395.8

15395.8

Throat Depth

MM

373

373

424

444

444

511

511

511

Arm Gap

MM

329

329

410

424.5

424.5

524

524

524

Dimensions

H(MM)

1541

1541

1758

1800

1800

1900

1900

1900

L(MM)

903

903

1009

1159

1159

1229

1229

1229

W(MM)

687

687

767

766

766

828

828

828
